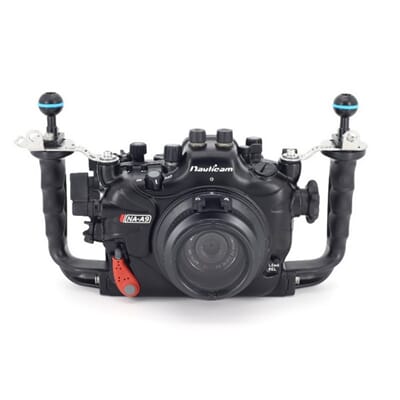

A professional housing befitting of a flagship camera, the NA-A9 underwater housing provides fingertip access to all key camera controls in a rugged and reliable aluminum underwater housing.
The NA-A9 housing inherits the core design elements from the Nauticam pro DSLR range, and bundles them in a more compact package. A patented port locking lever allows lens changes to be made in seconds. Opening the housing for quick battery and media changes is fast and easy with the locking housing latches. The system is a seamless extension of the camera.
Sharing the same lens port accessories as the Nauticam NA-A7II housing, a list of thirteen Sony FE mount lenses are currently supported. An adaptor allows the entire N120 DSLR lens lineup to be used as well, supporting the popular Canon EF lenses attached to the A9 with an EF to Sony E mount lens adapter. Also available is an adaptor to attach the water contact UW-Nikkor series lenses originally used on the Nikonos underwater range finder systems. From ultra wide fisheye lenses to long macros, the Nauticam A9 system has all focal lengths covered.
An optional LED flash trigger (26302) provides rapid fire strobe triggering with optical slave strobes over fiber optic cables. A new universal fiber optic cable set (26216) provides reliable triggering with all popular optical slave strobes!
Integrated Vacuum Monitoring and Leak Detection
Circuitry included as standard equipment provides constant monitoring of water tight integrity when combined with an optional Nauticam M14 Vacuum Valve II (25624). Green means safe to dive! A blue button integrated in the camera mounting tray, accessible from the port mount, allows vacuum monitoring electronics to be reset when changing lenses from the front of the housing. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.
SMC-1, 2.1:1 Reproduction Ratio with Sony 90mm (81201)
SMC-2, 3.3:1 Reproduction Ratio with Sony 90mm (81202)
WWL-1 Wet-mount Wide Angle Lens (130 deg Diagonal with 28mm, 83201)
M67 Flip Diopter Holder for M67 Macro Ports (25101)
M67 Double Flip Diopter Holder for M67 Macro Ports (25108)
M14 Vacuum Valve II (25624)
Nikonos 5-pin bulkhead with universal hotshoe connection (25056)
HDMI Bulkhead (25033)
180º Enhanced Viewfinder (32201)
45º Enhanced Viewfinder (32203)
Mini flash trigger for Sony (26302)
Complete line of flat/dome ports for all major lenses, available in acrylic and glass
Adaptor for UW-Nikkor "Nikonos" Rangefinder Lenses (37202)
Universal fiber optic cable system (26216) for Inon, Sea&Sea and Nauticam.
Replacement Housing O-ring (90124)
Depth Rating: 100m
Weight: 2.52 kg
Dimensions: 348mm x 200mm x 118mm W x H x D
Battery for Vacuum system: CR2032
No ports or lenses are included in this product. Must be ordered seperately.
