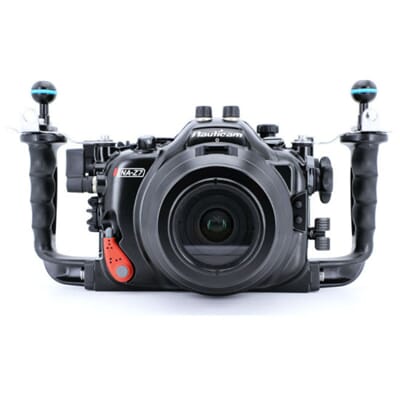

NIKON Z7 & Z6 NAUTICAM
The Z7 and Z6, Nikon's first full-frame mirrorless cameras offer underwater shooters the same legendary Nikon sensors with the versatility of an electronic viewfinder and the more compact form factor of a mirrorless system. The NA-Z7 supports both the Z6 and Z7 models.
Nauticam has produced a variety of housings for Nikon DSLR cameras and is not new to the mirrorless format. The NA-Z7, just as Nikon's Z6/7 cameras is an evolutionary step in underwater housings blending the Nikon F mount and new Z mount seamlessly in one housing.
F and Z mount support
The Nauticam NA-Z7 housing allows not only the use of the new Z mount Nikon glass but also the F mount lenses with the Nikon FTZ Adapter. This is critical as the new Z mount lenses are being phased in over the next few years. The Nauticam NA-Z7 housing features two lens release buttons that correspond to either F or Z mount lenses. When switching between F and Z mount lenses, the camera must be removed from the housing to remove the adapter.
The NA-Z7 is part of the N120 port system which allows for full support of Nikon F mount lenses with the same ports needed for their application on Nikon SLR housings. As Z mount lenses become available Nauticam will add supported configurations.
The NA-Z7 comes with Nauticam's self powered manual flash trigger preinstalled. The flash trigger plugs into the hot-shoe of the camera and uses LED lights recessed into each of the two optical bulkheads to trigger supported underwater flashes when used with the correct fiber optic connection. The flash trigger is powered by coin cell batteries that provide thousands of flashes per battery. The flash trigger can be upgraded to support TTL triggering (PN 2638 TTL Converter for Nikon).
The NA-Z7 supports many of the corrective wide angle and magnifying macro optics in the Nauticam lens lineup. F mount lenses, paired with the FTZ adapter can be used with the same extensions and ports as on Nauticam N120 Nikon DSLR housings.
Vacuum check sysytem
The NA-Z7 features Nauticam's vacuum check and leak detection system electronics preinstalled. When paired with the M16 Vacuum Valve II (25625) the system gives a visual indicator of watertightness with the integrated multicolor LED.
Dimensions 360mm x 200mm x 160mm (W x H x D)
Depth Rating 100m
Port Opening N120
In the box:
Nauticam NA-Z7 Housing
90122 Housing O-ring, lubricant and removal tool
CR2032 Battery (for vacuum system)
Allen Wrench Set
25625 M16 Vacuum Valve II (Pushbutton Release)
32201 Nauticam 180 straight viewfinder
32203 Nauticam 45 viewfinder
26308 TTL Converter for Nikon
85201 0.36x Wide Angle Conversion Port with Aluminum Float Collar (incl. N120 to N100 port adaptor)
86201 Macro to Wide Angle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens
Various electrical bulkheads
25033 standard HDMI bulkhead with M16 thread
25036 HDMI (D-C) cable in 190mm length
(Both 25033 and 25036 are standard accessories in Nauticam monitor housing)
