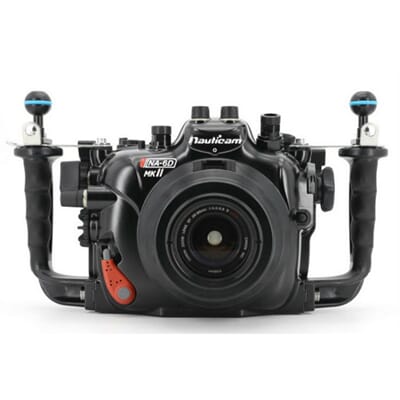

The NA-6D MKII UW-housing are of course filled with innovation, ergonomics, and reliability are the hallmarks of the Nauticam brand. Every new housing design is carefully crafted based on feedback from Nauticam users around the globe.
More information
Key camera controls are placed within an easy reach from the ergonomic, rubberized handles. An incredible amount of design resources go into crafting this layout, but that effort pays off with unmatched ease of use. Controls on the housing are placed exactly where they should be for easiest access in water, regardless of the camera layout. A large, sculpted shutter release lever is placed at the right hand grip for index finger operation, and features a patented geared mechanism that improves sensitivity for tactile feel of half press and full press. The right hand side double thumb lever has been improved with a more ergonomic positioning. This lever accesses both AF-On and Video Record. The Multi Controller Pad allows full multidirectional use of the 8-way controller, while still allowing for the rear command dial to be brought out to the right side of the housing. No other housing comes close to achieving this kind of ergonomic access to these critical controls. There is even a convenient on/off button and indicator window for use with the optional TTL flash trigger for Canon (26321).
The patented housing Locking Latch System has received acclaim worldwide for its ease and functionality. These recessed latches are equipped with safety locks, reduce bulk and require minimal physical effort to engage and release. No wrestling, no twisting, no misalignment – just seat and lock. Lens changes are also easily accomplished without removing the camera from the housing using the lens release button logically accessed on the housing front.
Optics / Ports
Experienced shooters know a camera is only as good as the lens in front of it, and the same is true when choosing optics for an underwater camera system. Four optically coated glass dome ports (250mm, 230mm, 180mm, and 140mm diameters) and a series of acrylic ports support popular lenses from Canon, Sigma, and Tokina. Port configurations are extensively tested at Nauticam to determine the ideal extension ring length for best performance.
For macro and super macro shooting, the Nauticam Super Macro Converter is a revolutionary accessory. This is an entirely in house design, optimized for use in water. The water contact correction offers the highest overall sharpness, free from chromatic aberration and purple fringing, with reproduction ratios exceeding 2:1 when used with a Canon EF 100mm f/2.8L Macro IS USM Lens. A new Super Macro Converter II provides even stronger magnification, exceeding 4:1 reproduction ratio, for extreme macro magnification with water contact optimization yielding the highest possible quality.
Vacuum System
Circuitry included as standard equipment provides constant monitoring of water tight integrity when combined with an optional Nauticam M16 Vacuum Valve II (PN 25625). A simple vacuum reset pushbutton is also placed in the port mount allowing the vacuum system to be calibrated and initialized from the housing front.
Optional accessories
TTL Flash Trigger for Canon (26321)
Flash Trigger for Canon (26301)
M14 Nikonos Bulkhead to Canon Hotshoe (25020)
M14 Ikelite Bulkhead to Canon Hotshoe (25022)
Patent Pending Super Macro Converter (81201), providing 2.3:1 reproduction ration with the popular Canon EF 100mm f/2.8L Macro IS USM Lens
SMC-2 for Extreme Super Macro (81202), greater than 4:1 reproduction with EF 100mm f/2.8L Macro IS USM Lens
M16 Vacuum Valve (25625)
Locking port extension rings from 10mm to 90mm
Monitor Housing for SmallHD 502 Monitor (17906)
Large Diameter Multi Core Universal Fiber Optic Cable (26216)
Full line of mounting accessories for lighting, including mount balls, strobe adapters, arms, clamps, and specialty items
Multiple styles of lanyards
Lens holders, including flip-up
Focus and Zoom gears for many Canon, Tokina, and Sigma lenses
Port Adapters for Aquatica, Hugyfot, Ikelite, Inon, Nexus M5 & M6, Sea & Sea NX, Seacam, Subal Version 3 & 4, and Zillion
Handle accessories including smaller handles, handle extensions for cold water diving
Spare Housing O-Ring (90121)
Specifications
Depth Rating: 100m
Weight: 3.05kg
Dimensions: 360mm x 175mm x 135mm (W x H x D)
Vacuum Sensor battery: CR2032
